Product information
Application
PRODUCT PARAMETERS
SPECIFICATION OF DUPLEX BOARD WITH GRAY BACK
Grammage g/m2 | 230 | 250 | 270 | 300 | 350 | 400 |
+6,-3 | +6,-3 | +6,-3 | +6,-3 | +6,-3 | +6,-3 | |
Thickness mm | ≥0.28 | ≥0.31 | ≥0.335 | ≥0.37 | ≥0.44 | ≥0.495 |
Moisture% | 6~10 | |||||
Smoothness s | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
Brightness% | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
Stiffness CD/MD Nm | ≥2.5/5.75 | ≥3.0/6.90 | ≥3.8/8.74 | ≥4.5/10.35 | ≥7.0/16.0 | ≥10.0/21.5 |
Bending resistance time | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
Ink KN% | 18~26 | 18~26 | 18~26 | 18~26 | 18~26 | 18~26 |
Water Absorption up g/m2 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 |
Burst strength up kPa | ≥500 | ≥550 | ≥580 | ≥630 | ≥650 | ≥700 |
IGT m/s | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
1) Strong stiffness and excellent folding resistance.
2) Good printability.
3) Adaptable to after processing procedures and can be applied to particular requirements of different products package.
4) Strict quality control.
5) Customized service to different requirements for customers

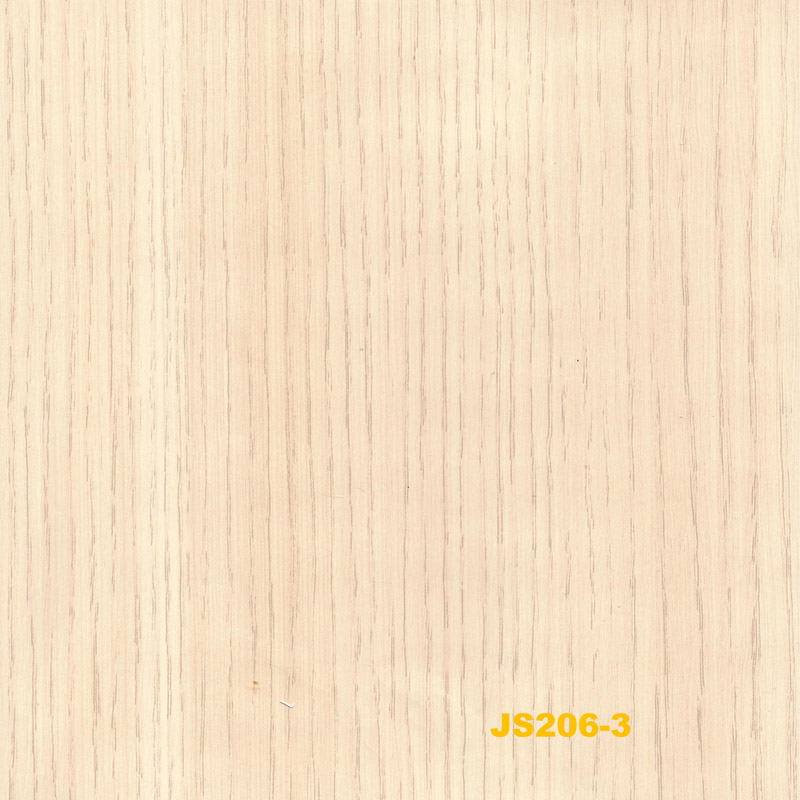

Product Display
Factory Display
